NPAT: VNA (VoIP Network Assessment)

NPAT: VNA (VoIP Network Assessment)

The VNA (VoIP Network Assessment) is meant to be a comprehensive test to study network readiness for Voice over IP services. It includes metrics like Upstream / Downstream Jitter, Packet Loss, MOS scores. It also includes Upload / Download Capacity, SIP ALG Detection, and Max concurrent VoIP calls supported by your internet connection.

The VNA test will simulate a VoIP call by crafting UDP RTP packets and sending them to and from the client's browser plugin. It uses simulated G.711u packets to create flows with a bit rate of 87.2Kbps. Flows are added incrementally until 1 percent packet loss is detected. At that point, the test will reduce the number of flows to the amount prior to detecting packet loss to double-check it can sustain less than 1 percent packet loss at that rate. After this second check the test will end and results will be displayed.

This is a more accurate measurement of the overall capacity of an internet connection but not the full assessment of a round trip. Please note the VNA test may take 3-4 minutes to complete.

http://npat.myphoneone.com

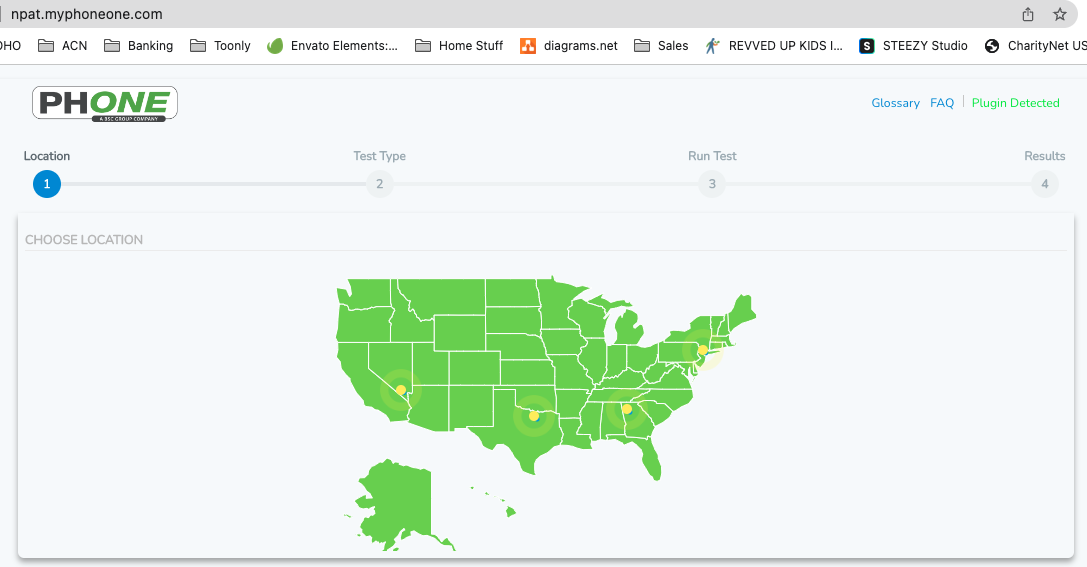

Select the test location closest to your location.

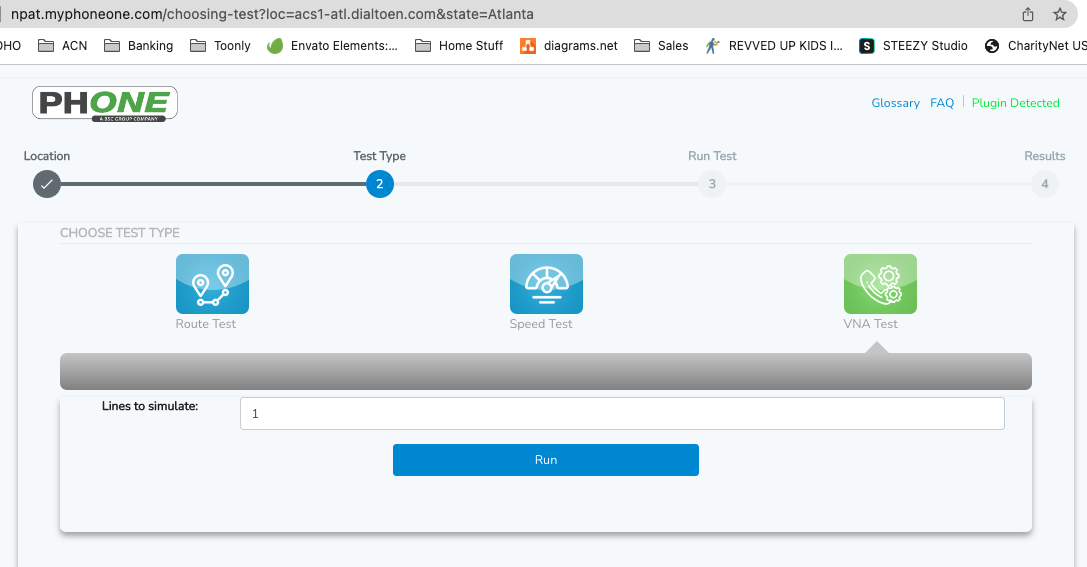

Select the VNA Test button on the right of the screen
Click on Run

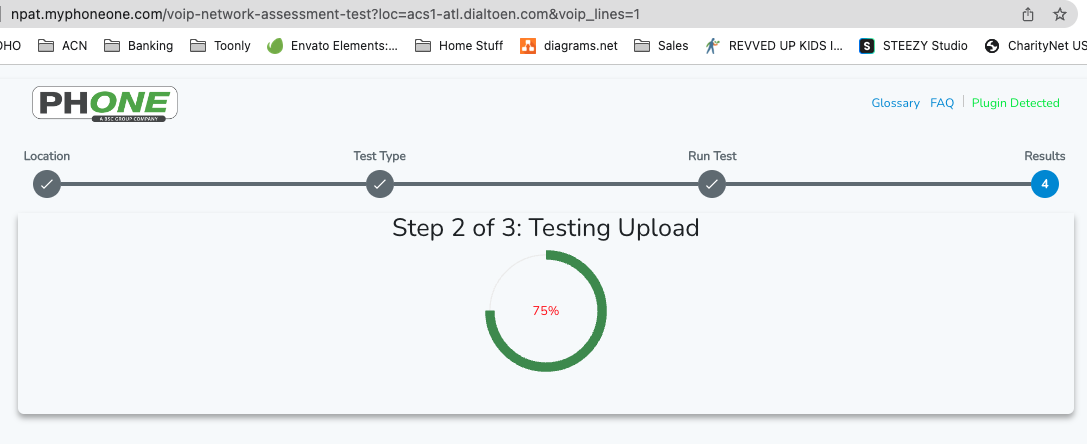

There will be three (3) test run

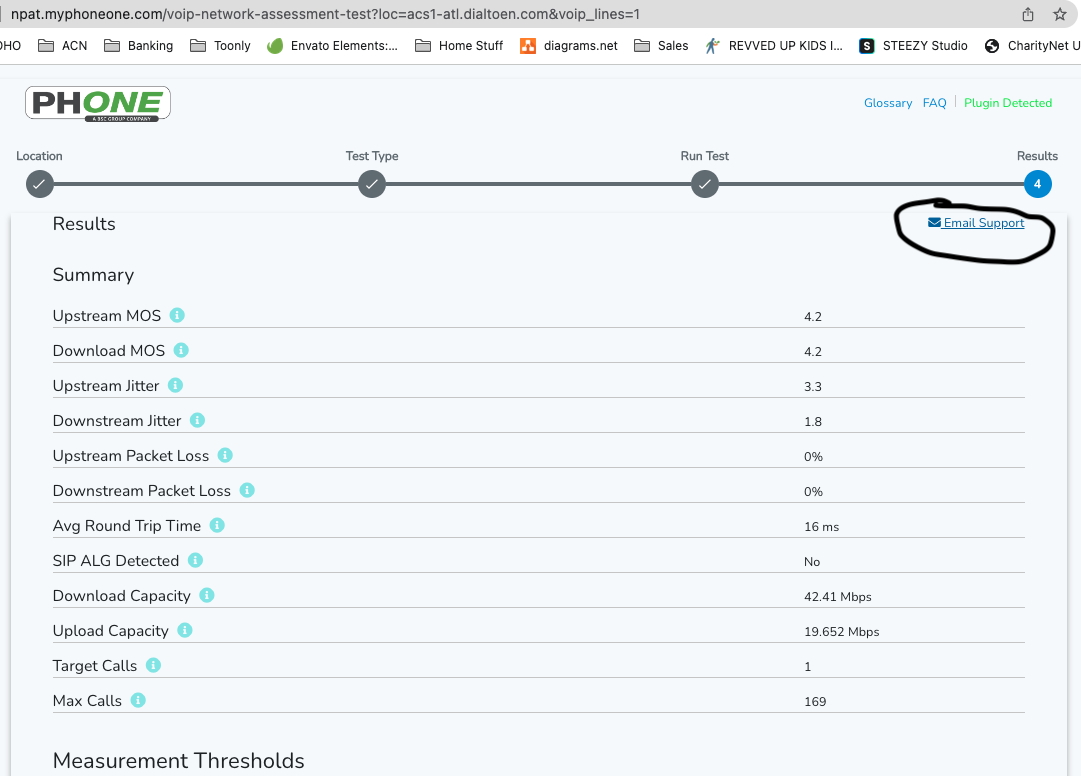

Once complete, please use the Email Support link in the top right of the results page

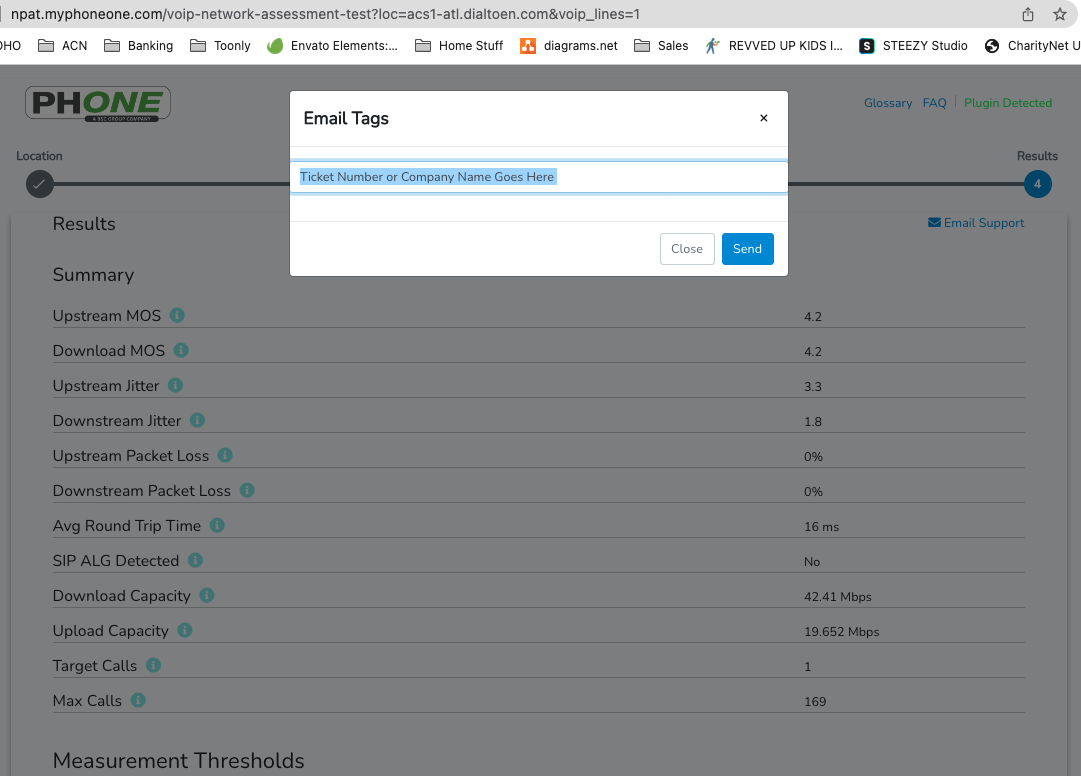

Enter your ticket number in the popup box and click Send

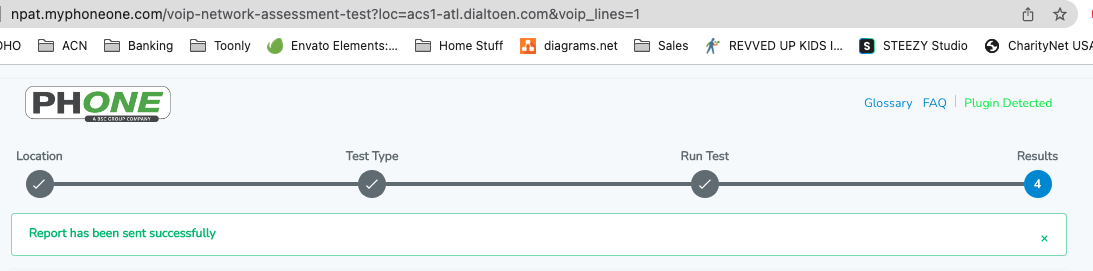

You should then see that your report was sent successfully.



Once sent, please allow some time for support to review your report and associate it with your current support ticket.
